Mô tả:

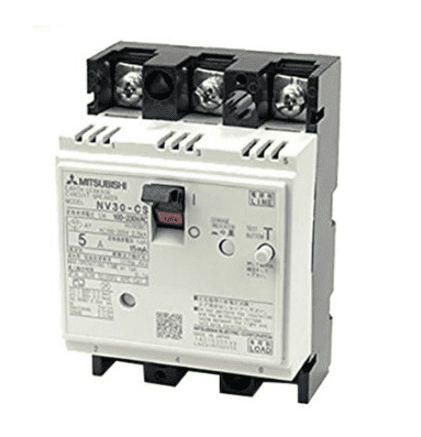

ELCB-CẦU DAO TỰ ĐỘNG CHỐNG DÒNG RÒ DẠNG KHỐI - DÒNG KINH TẾ C
EARTH LEAKAGE CIRCUIT BREAKER - C SERIES ELCB

• Sản xuất tại Nhật Bản
• Tiêu chuẩn IEC 60947-2
• Dòng định mức tới 630A
• Dòng rò định mức: 15,30,100,200,500mA

Mô tả:

ELCB-CẦU DAO TỰ ĐỘNG CHỐNG DÒNG RÒ DẠNG KHỐI - DÒNG KINH TẾ C
EARTH LEAKAGE CIRCUIT BREAKER - C SERIES ELCB

• Sản xuất tại Nhật Bản
• Tiêu chuẩn IEC 60947-2
• Dòng định mức tới 630A
• Dòng rò định mức: 15,30,100,200,500mA

Mô tả:

ELCB-CẦU DAO TỰ ĐỘNG CHỐNG DÒNG RÒ DẠNG KHỐI - DÒNG KINH TẾ C
EARTH LEAKAGE CIRCUIT BREAKER - C SERIES ELCB

• Sản xuất tại Nhật Bản
• Tiêu chuẩn IEC 60947-2
• Dòng định mức tới 630A
• Dòng rò định mức: 15,30,100,200,500mA

Mô tả:

Combined signal line and power protector
The Novaris SLC range provides surge protection for a single 36V, 20kA high energy balanced pair signal and a single 10A, 24V DC power supply. This combined protector is compact at 12mm wide, allowing for easy installation. Applications include SCADA, PLC, fire and security systems, telecommunications and railway signaling.
Indicating fuse
In the event of a surge beyond the rating of the SLC, a fuse will rupture. The red pin on top of the unit indicates this and in turn a short circuit to earth is prevented ensuring fail safe operation.
Multistage protection
Following the primary GDT is a series coordinating impedance followed by a high-speed clamping diode circuit providing safe voltage protection level for the equipment to be protected.
Contact Reliability
Gold plated fingers used on the connector between top and bottom module.
Pluggable design
The pluggable design allows for easy removal and replacement.
Xuất xứ: Australia/ Malaysia

Mô tả:

Two Phase DIN Mount Surge Filters
The Novaris IFD2 range of surge ×lters is designed for protecting foating AC or DC power supplies. Applications include DC power supplies, balanced circuits for rail applications and single phase IT systems.
Multistage Protection
The IFD2 uses 3 stages of protection to provide a low let through voltage. The first stage comprises a delta con×guration of metal oxide varistors to provide clamping between both lines and between each line and earth. The second stage is a low pass filter providing instantaneous protection against high frequency impulses. The third stage is a line to line metal oxide varistor to provide an extra level of protection against primary and load side surges.
No Earth Leakage
The IFD2 configuration results in zero earth leakage under normal operating conditions. The earth reference for the product is isolated using a spark gap. This means even in the event of a short circuit failure within the device, no current will pass to earth.
Safe Metal Enclosure
Novaris power protection products are housed in safe, all metal enclosures. In the event of a prolonged overvoltage they will not catch fire or explode. Installation Independent Performance
Series surge protectors such as the SSP and IFD range house the shunt (parallel) connection of the protection components internally within the device. This reduces the connection impedance to a minimum to guarantee optimal performance in all installations.
Xuất xứ: Australia/ Malaysia

Mô tả:

Two Phase DIN Mount Surge Filters
The Novaris IFD2 range of surge ×lters is designed for protecting foating AC or DC power supplies. Applications include DC power supplies, balanced circuits for rail applications and single phase IT systems.
Multistage Protection
The IFD2 uses 3 stages of protection to provide a low let through voltage. The first stage comprises a delta con×guration of metal oxide varistors to provide clamping between both lines and between each line and earth. The second stage is a low pass filter providing instantaneous protection against high frequency impulses. The third stage is a line to line metal oxide varistor to provide an extra level of protection against primary and load side surges.
No Earth Leakage
The IFD2 configuration results in zero earth leakage under normal operating conditions. The earth reference for the product is isolated using a spark gap. This means even in the event of a short circuit failure within the device, no current will pass to earth.
Safe Metal Enclosure
Novaris power protection products are housed in safe, all metal enclosures. In the event of a prolonged overvoltage they will not catch fire or explode. Installation Independent Performance
Series surge protectors such as the SSP and IFD range house the shunt (parallel) connection of the protection components internally within the device. This reduces the connection impedance to a minimum to guarantee optimal performance in all installations.
Xuất xứ: Australia/ Malaysia

Mô tả:

Two Phase DIN Mount Surge Filters
The Novaris IFD2 range of surge ×lters is designed for protecting foating AC or DC power supplies. Applications include DC power supplies, balanced circuits for rail applications and single phase IT systems.
Multistage Protection
The IFD2 uses 3 stages of protection to provide a low let through voltage. The first stage comprises a delta con×guration of metal oxide varistors to provide clamping between both lines and between each line and earth. The second stage is a low pass filter providing instantaneous protection against high frequency impulses. The third stage is a line to line metal oxide varistor to provide an extra level of protection against primary and load side surges.
No Earth Leakage
The IFD2 configuration results in zero earth leakage under normal operating conditions. The earth reference for the product is isolated using a spark gap. This means even in the event of a short circuit failure within the device, no current will pass to earth.
Safe Metal Enclosure
Novaris power protection products are housed in safe, all metal enclosures. In the event of a prolonged overvoltage they will not catch fire or explode. Installation Independent Performance
Series surge protectors such as the SSP and IFD range house the shunt (parallel) connection of the protection components internally within the device. This reduces the connection impedance to a minimum to guarantee optimal performance in all installations.
Xuất xứ: Australia/ Malaysia

Mô tả:

Single Phase Surge Filters
Novaris DIN mount Surge Filter are suitable for installation in circuits up to 32A. The SFD range has been engineered to protect sensitive loads.
Compact Design
Their compact design makes them an ideal choice for space restricted applications.
All Mode Protection
Protection is provided for all combinations of lines (L-N, L-PE, N-PE) ensuring the maximum level of protection is achieved at all times.
Safe Metal Enclosure
Novaris surge protection products are housed in safe, all metal enclosures. In the event of a prolonged overvoltage they will not catch fire or explode.
Three Stages of Protection
Novaris surge filters have 2 stages of varistor protection separated by a low pass LC filter. This 3 stage combination reduces the effects of high frequency noise and transients to provide the highest level of protection to sensitive loads.
Xuất xứ: Australia/ Malaysia

Mô tả:

Two Phase DIN Mount Surge Filters
The Novaris IFD2 range of surge ×lters is designed for protecting foating AC or DC power supplies. Applications include DC power supplies, balanced circuits for rail applications and single phase IT systems.
Multistage Protection
The IFD2 uses 3 stages of protection to provide a low let through voltage. The first stage comprises a delta con×guration of metal oxide varistors to provide clamping between both lines and between each line and earth. The second stage is a low pass filter providing instantaneous protection against high frequency impulses. The third stage is a line to line metal oxide varistor to provide an extra level of protection against primary and load side surges.
No Earth Leakage
The IFD2 configuration results in zero earth leakage under normal operating conditions. The earth reference for the product is isolated using a spark gap. This means even in the event of a short circuit failure within the device, no current will pass to earth.
Safe Metal Enclosure
Novaris power protection products are housed in safe, all metal enclosures. In the event of a prolonged overvoltage they will not catch fire or explode. Installation Independent Performance
Series surge protectors such as the SSP and IFD range house the shunt (parallel) connection of the protection components internally within the device. This reduces the connection impedance to a minimum to guarantee optimal performance in all installations.
Xuất xứ: Australia/ Malaysia

Mô tả:

Two Phase DIN Mount Surge Filters
The Novaris IFD2 range of surge ×lters is designed for protecting foating AC or DC power supplies. Applications include DC power supplies, balanced circuits for rail applications and single phase IT systems.
Multistage Protection
The IFD2 uses 3 stages of protection to provide a low let through voltage. The first stage comprises a delta con×guration of metal oxide varistors to provide clamping between both lines and between each line and earth. The second stage is a low pass filter providing instantaneous protection against high frequency impulses. The third stage is a line to line metal oxide varistor to provide an extra level of protection against primary and load side surges.
No Earth Leakage
The IFD2 configuration results in zero earth leakage under normal operating conditions. The earth reference for the product is isolated using a spark gap. This means even in the event of a short circuit failure within the device, no current will pass to earth.
Safe Metal Enclosure
Novaris power protection products are housed in safe, all metal enclosures. In the event of a prolonged overvoltage they will not catch fire or explode. Installation Independent Performance
Series surge protectors such as the SSP and IFD range house the shunt (parallel) connection of the protection components internally within the device. This reduces the connection impedance to a minimum to guarantee optimal performance in all installations.
Xuất xứ: Australia/ Malaysia

Mô tả:

xxx = Uc. (Insert required peak voltage) 7V5, 18, 28, 36, 68, peak.
IS-SLT Intrinsically Safe
The intrinsically safe and Øameproof IS-SLT range provides surge protection for most twisted pair signal cables associated with intrinsically safe field devices.
Xuất xứ: Australia/ Malaysia

Mô tả:

The Liebert® PSA itON is a feature-rich reliable line-interactive UPS designed for desktop computer workstations and stand-alone IT equipment. It has an automatic voltage regulator (AVR) that allows flexibility and reliability for PCs and other sensitive electronic equipment. Designed with simple controls for easy operation, the Liebert® PSA itON provides more than enough time to save work in process before shutting down the system.

   Ideally Suited for:

• Desktop PCs
• Professional workstations
• Small routers, bridges, and hubs
• Point-of-sale terminals
• Other sensitive electronics

Mô tả:

NSP Surge Diverter
The Novaris NSP Surge Diverter range is a type 2 SPD and is designed for low voltage power supply system protection at the boundaries between lightning protection zone 1-2.
KEMA Certified
The NSP range is certi×ed as per IEC 61643-11, Class II 40kA.
Pluggable Plastic Enclosure
The pluggable design allows for easy replacement of the modules. Each module is made from thermoplastic extinguishing degree UL94 V-0.
Display and Alarm
The NSP range features a fault indication window, green for good and red for replace there is also a remote alarm contact available.
